15 Deck Framing Ideas for a Strong Foundation
A deck is only as good as the deck framing ideas bones beneath it. Walk across any well-built outdoor platform and you will immediately notice the difference that solid construction makes, a surface that does not flex underfoot, a structure that deck framing ideas feels as permanent as the house it stands beside. That feeling does not come from the decking boards on top. It comes from the framing below.
Deck framing is the skeletal system of your entire outdoor living space. It determines whether your deck can handle the weight of outdoor furniture,ideas large gatherings, grills, hot tubs, and years of seasonal weather without shifting, sagging, or separating from the home. Getting the framing right from the start is the single most important decision you will make during the entire build process.
Over the past decade of writing about residential construction, I have seen homeowners invest thousands of dollars in beautiful composite boards, only to discover a few seasons later that the substructure beneath was undersized, improperly spaced, or missing critical hardware. The result is always the same: expensive repairs, compromised safety, and regret.

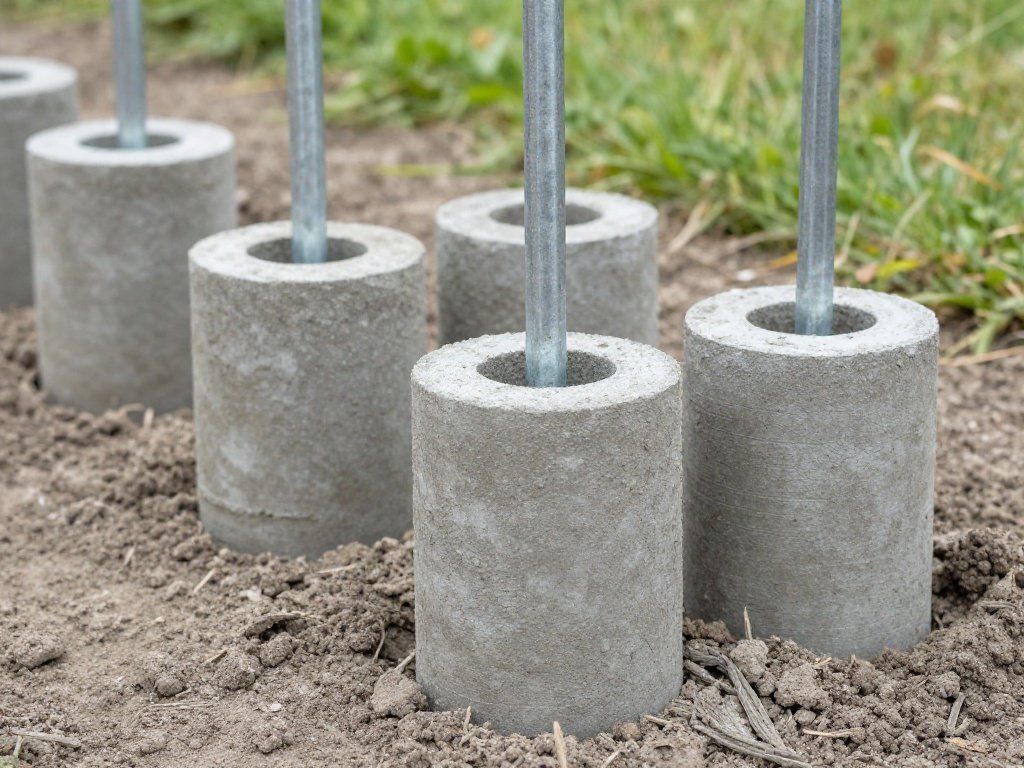

1. Start with Properly Spaced Concrete Footings
Before any lumber touches the ground, you need a foundation that will not move. Concrete footings are the anchors of the entire system, transferring the deck’s combined live and dead load safely into the earth.Footings must be poured below the frost line deck framing ideas for your region. In cold climates, that can mean digging 36 to 48 inches deep. Footings placed above the frost line will heave during freeze-thaw cycles, causing posts to shift and the entire frame to go out of level over time. Use tube forms sized to meet local code requirements, typically 10 to 12 inches in diameter for standard residential decks.framing guide

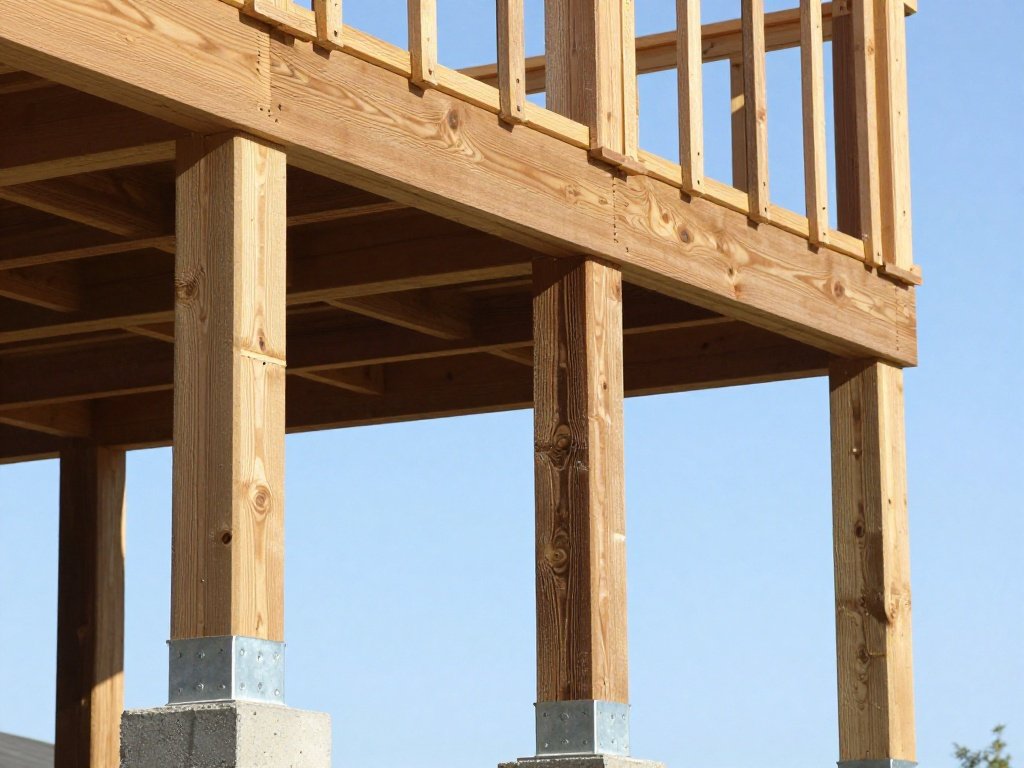

2. Use 6×6 Posts Instead of 4x4s for Elevated Decks
Post size is one of the most commonly underestimated variables in deck framing. Many homeowners default to 4×4 posts because they appear adequate and cost less. However, for any deck elevated more than a couple of feet off the ground, 6×6 posts offer significantly better resistance to lateral movement and buckling under deck framing ideas load.A 4×4 post can handle compressive loads well when perfectly aligned, but real-world conditions include slight imperfections in plumb, wind loading, and the dynamic forces created when people move across the deck. A 6×6 post provides a far greater safety margin and creates a more visually substantial look that suits the scale of most outdoor builds.Deck

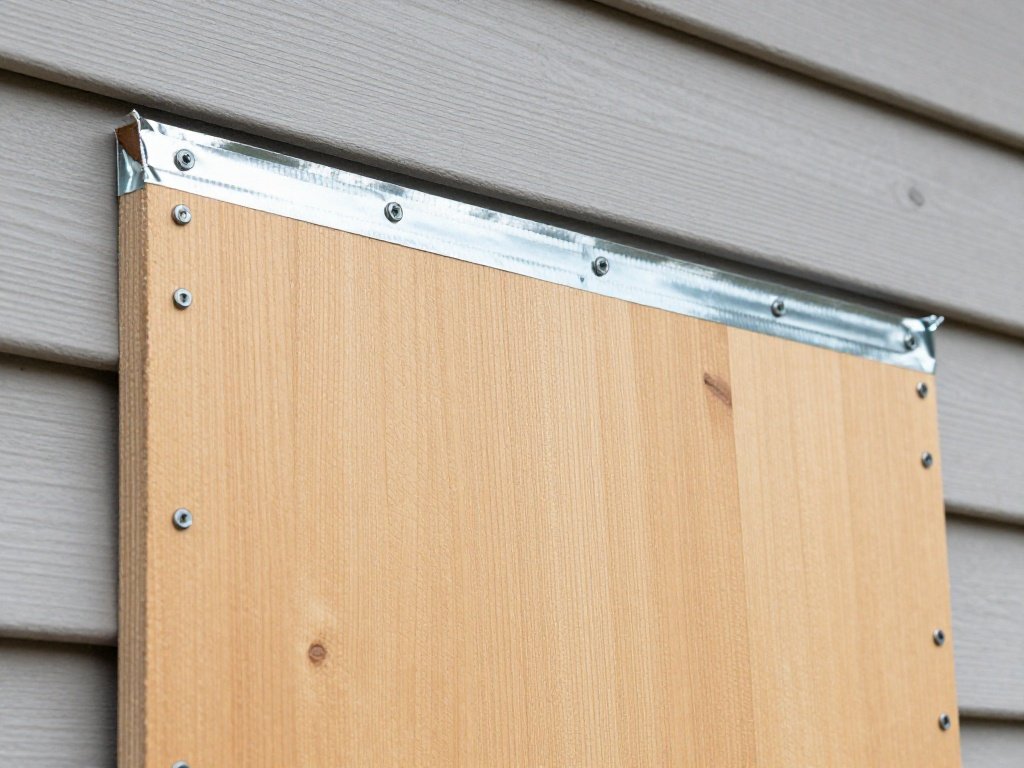

3. Install a Properly Flashed Ledger Board
For any deck attached to the house, the ledger board is the most structurally critical connection in the entire frame. It anchors one side of the deck to the home’s band joist and transfers a significant portion of the deck’s deck framing ideas load into the house structure.The most common cause of deck failures involving attached decks is a poorly installed or decayed ledger. Water infiltration between the ledger and the house wall rots both the ledger and the house framing behind it, often invisibly, over several years.Home depot

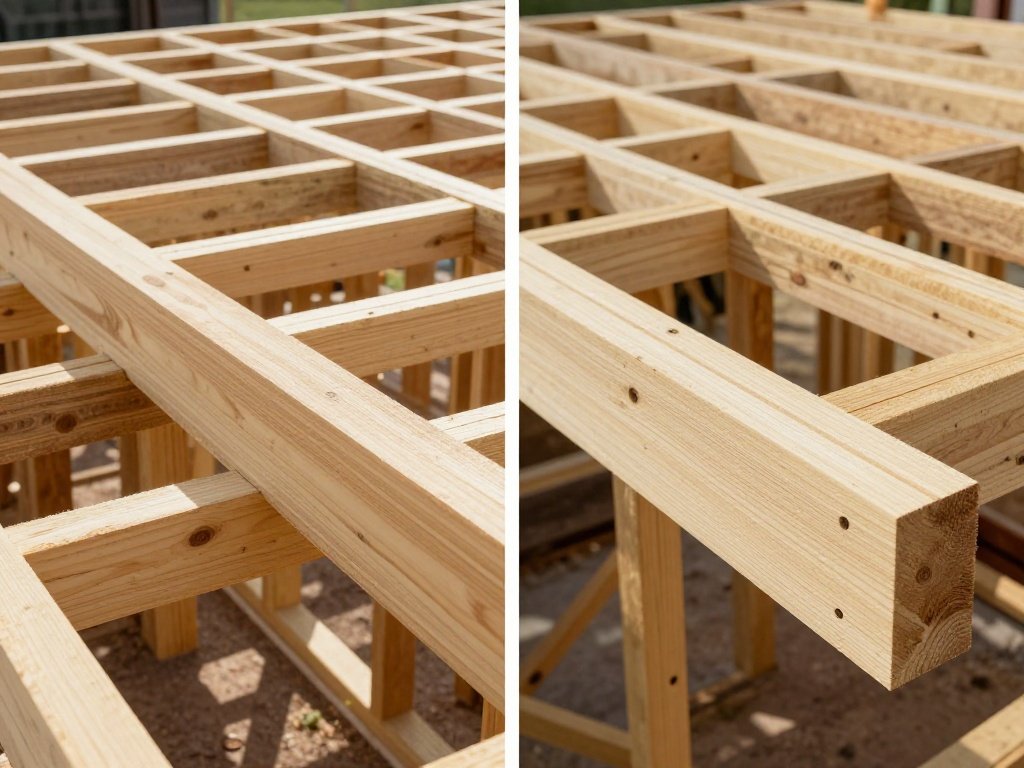

4. Choose Between Flush Beams and Drop Beams Intentionally
A drop beam sits below the joists and is attached to the tops or sides of the posts. It allows for more flexibility in post placement and makes it easier to adjust the overall deck height. Drop beams are a practical choice when there is enough clearance between the frame and the ground.A flush beam sits at the same height as the joists and is connected to them with joist hangers. This configuration lowers the overall profile of the deck and is ideal for low-clearance builds where a drop beam would be too close to the ground. Flush beam designs also produce a cleaner, more streamlined appearance when the underside of the deck is visible.

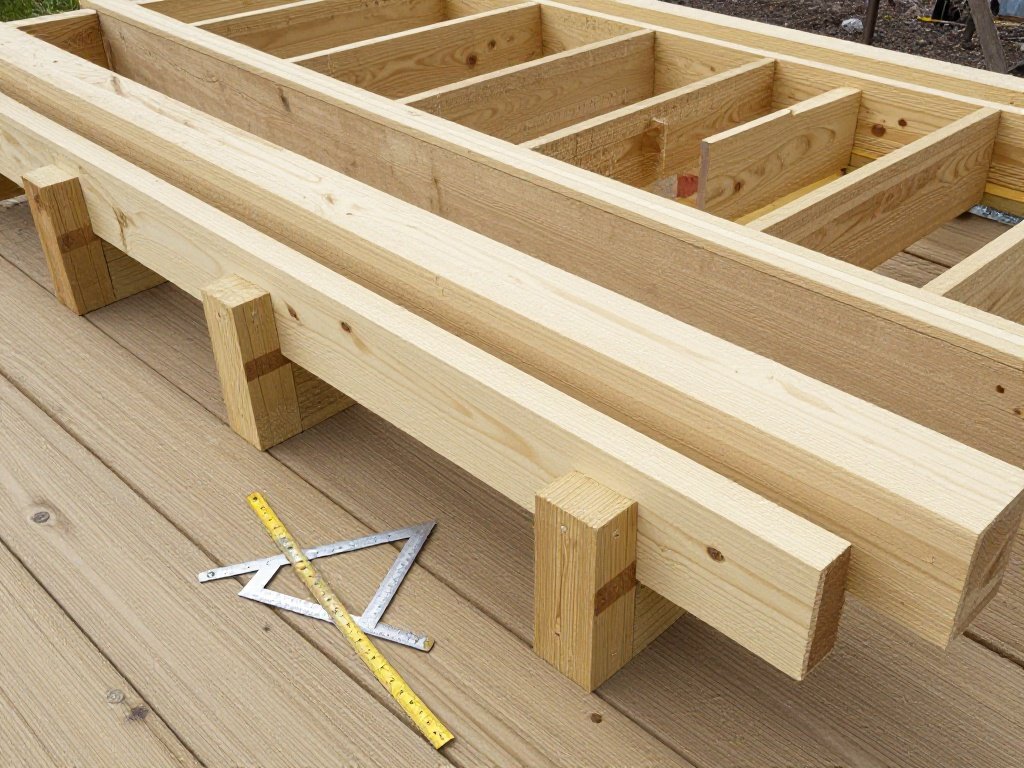

5. Size Your Beams Correctly Using Span Tables
Undersized beams are a structural liability. A beam that spans too far between posts will sag over time, even if it looks adequate on day one. Wood creeps under sustained load, meaning gradual deflection compounds over deck framing ideas years.Span tables published by the American Wood Council and adopted by most local building codes give precise guidance on beam sizing. The span capacity of a beam depends on the lumber species, the beam dimensions, the tributary width of the joists it carries, and the spacing between support posts.

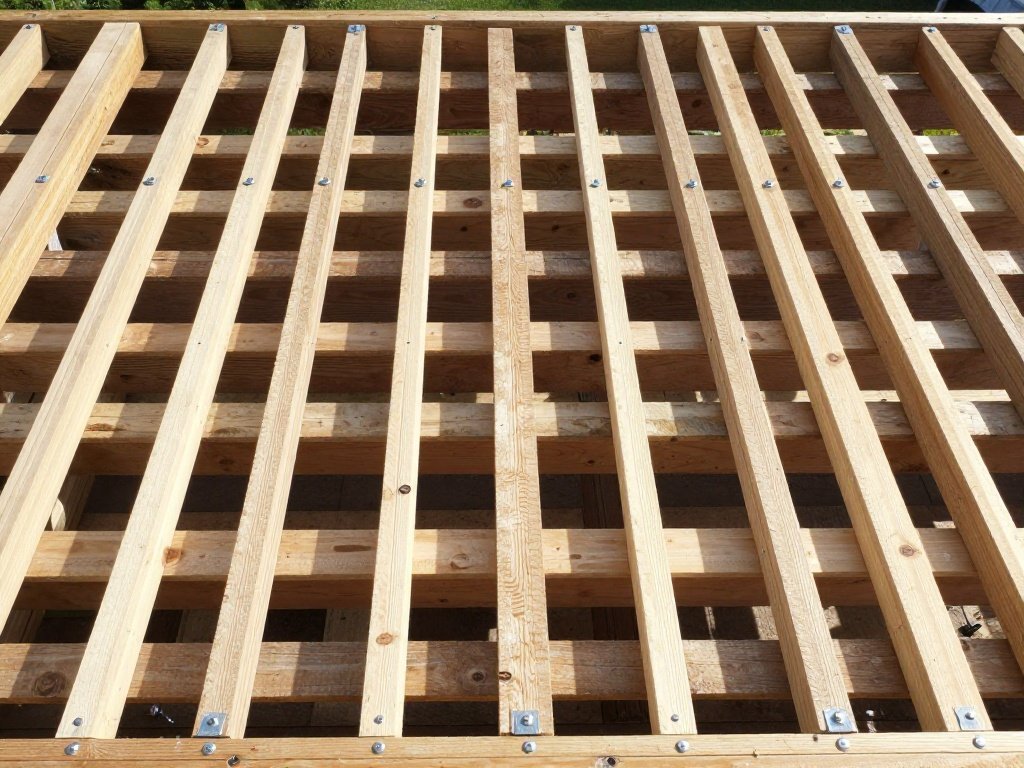

6. Frame Joists at 12-Inch Centers for a Stiffer Deck
Standard joist spacing for most deck builds is 16 inches on center. This meets code requirements for most lumber species and decking materials. However, tightening that spacing to 12 inches on center produces a noticeably stiffer, more solid feel underfoot, particularly on longer spans.Twelve-inch spacing is also required when installing diagonal decking patterns. When boards run at a 45-degree angle to the joists, the effective span they must cross increases, which means the supporting structure beneath them needs to be proportionally closer together.

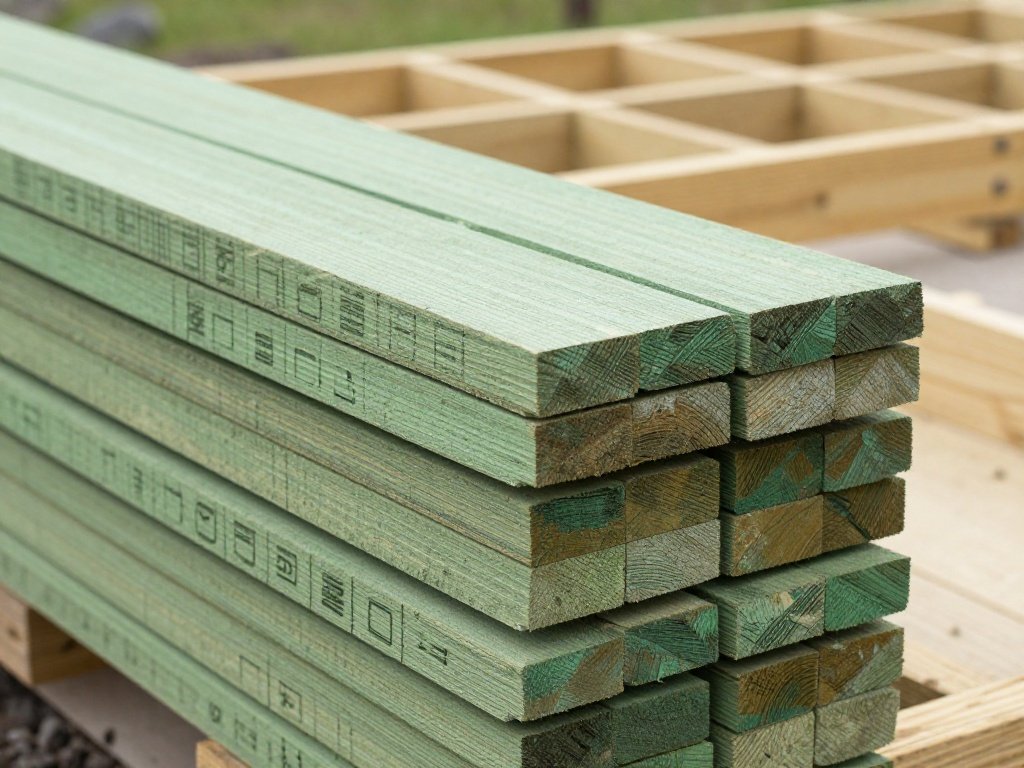

7. Use Pressure-Treated Lumber Rated for Ground Contact
Not all pressure-treated lumber is equal. The chemical retention level of the wood determines its suitability for different applications. Standard above-ground pressure-treated lumber is rated for exposed outdoor use but is not intended for deck framing ideas direct soil or concrete contact.Posts embedded in or adjacent to concrete footings, as well as any framing within 6 inches of grade, should use lumber rated for ground contact, which carries a higher chemical retention level designed for conditions where moisture and microbial activity are constant.

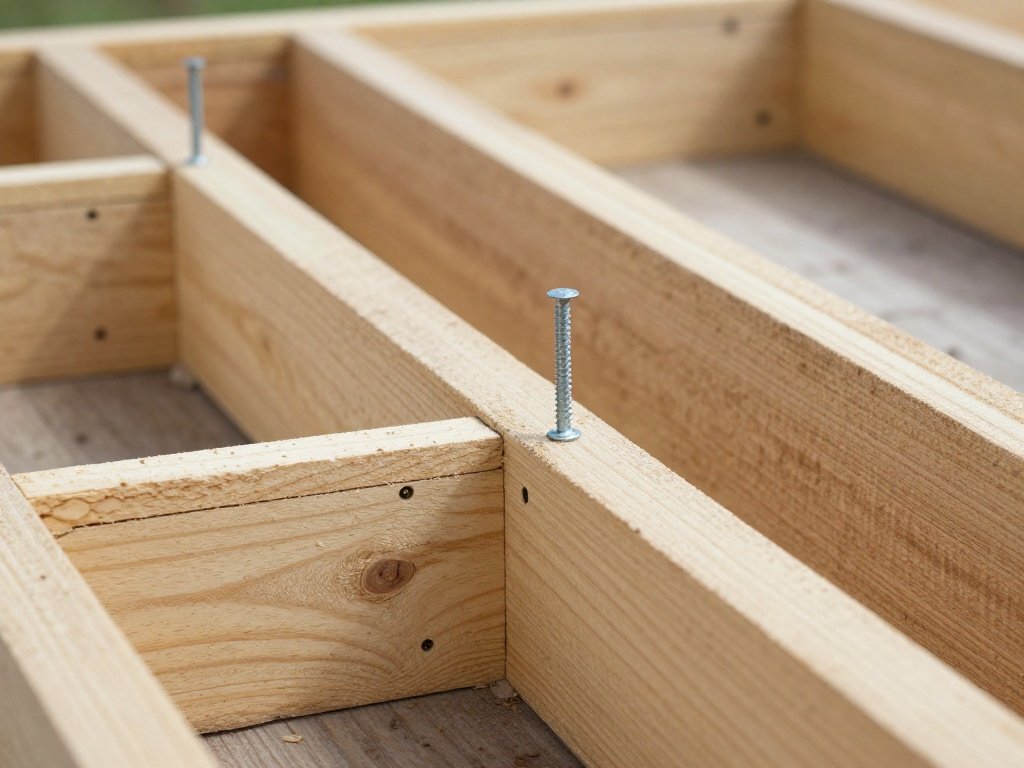

8. Install Blocking Between Joists for Added Rigidity
Blocking refers to short pieces of lumber cut to fit between the joists and installed perpendicular to them. These pieces serve multiple functions that are easy to overlook but significant in practice.First, blocking prevents joist rotation and deck framing ideas twisting under load. Over time, unsupported joists can roll slightly from their vertical position, reducing their load-carrying efficiency. Blocking holds every joist perfectly plumb between its supports.Second, blocking distributes point loads more evenly across multiple joists rather than concentrating stress on a single member. For decks that will support built-in planters, heavy furniture, or outdoor kitchen structures, mid-span blocking is an important structural upgrade.

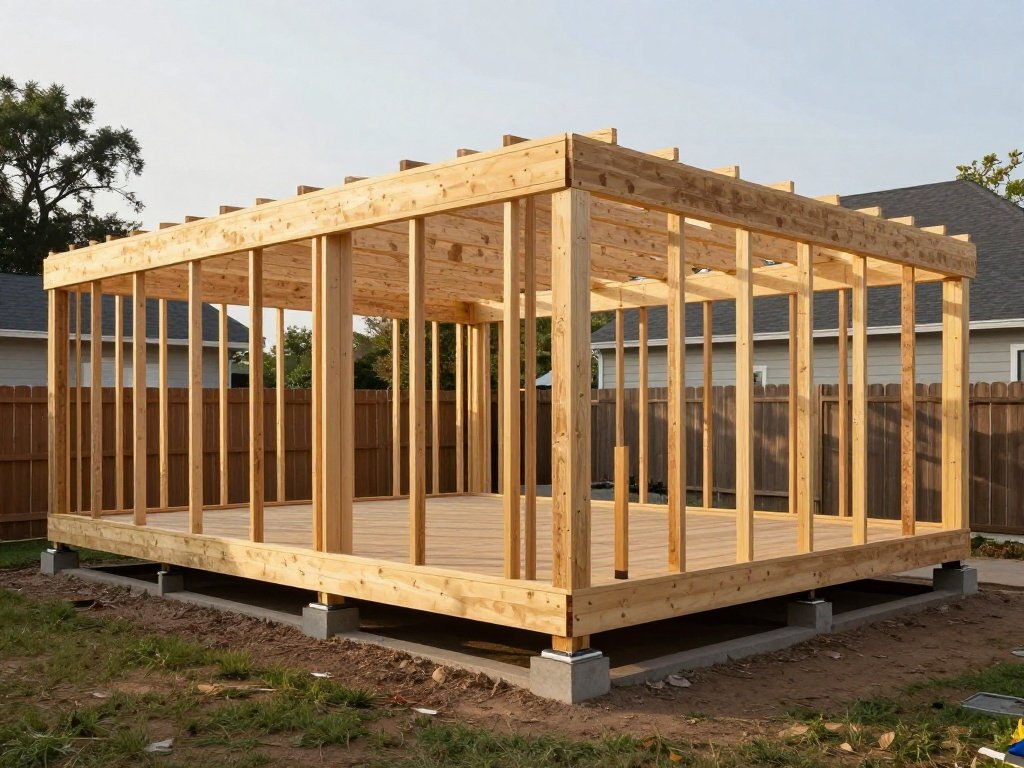

9. Build a Freestanding Frame for Code Compliance and Versatility
An attached deck relies on the house for structural support, which creates a permanent dependency on the home’s framing. A freestanding deck, by contrast, supports itself entirely through its own posts and footings, with no connection to the house for structural load transfer.Freestanding frames have become increasingly popular for several reasons. Many municipalities have tightened requirements for attached deck connections, making freestanding designs simpler to permit in some areas. Freestanding decks also allow for more layout flexibility and eliminate the risk of moisture infiltration through a ledger connection.

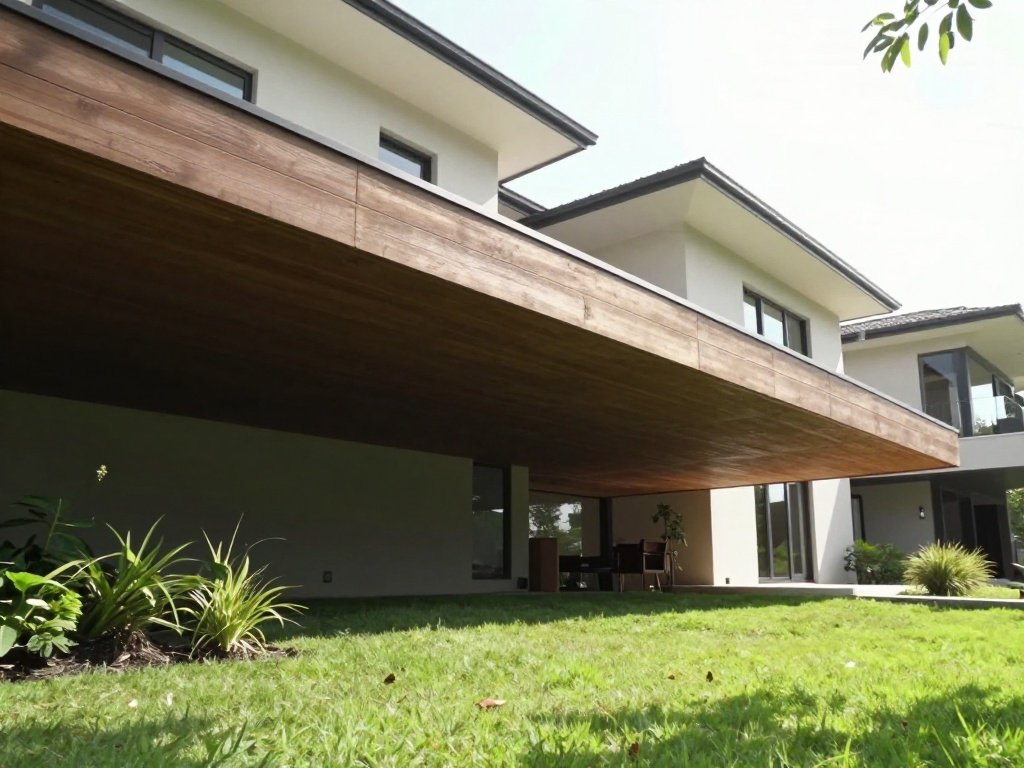

10. Design a Cantilevered Section to Extend Usable Space
A cantilevered deck frame extends the joists beyond the last beam without additional posts or footings beneath the overhang. This creates a floating appearance and adds usable square footage without the cost and labor of additional deck framing ideas foundation work.Cantilever lengths are governed by the joist size and species. As a reliable rule of thumb, the overhang should not exceed one-quarter of the total joist span. Beyond that ratio, the uplift forces at the opposite end of the joist can cause structural problems at the connection point.

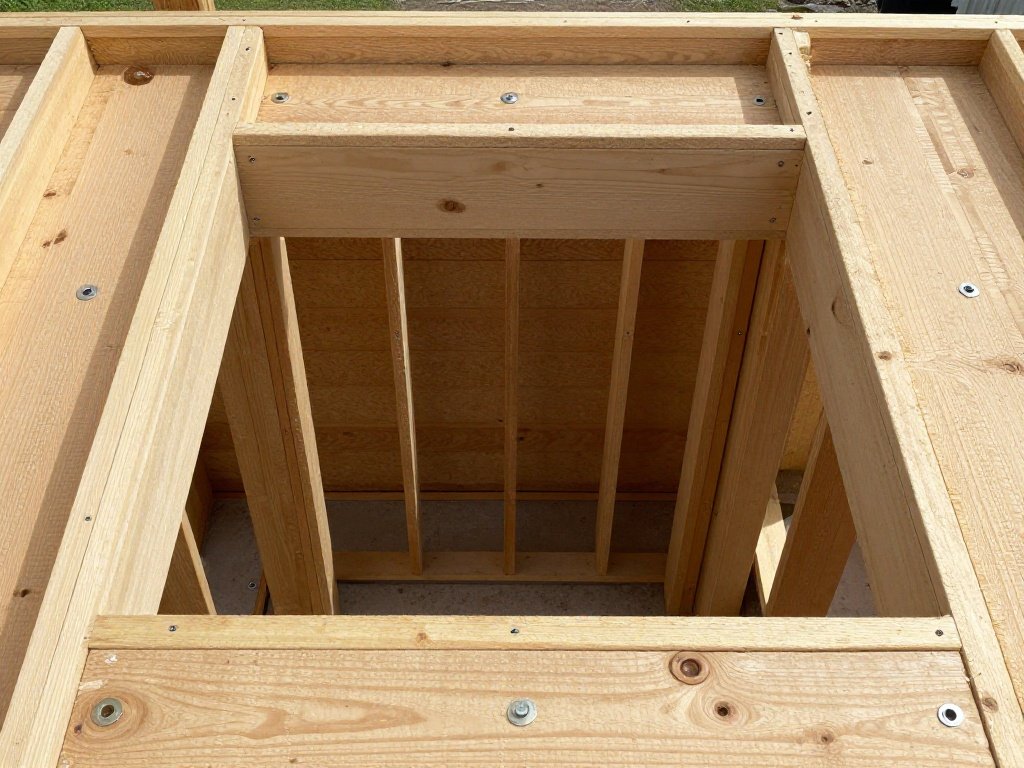

11. Incorporate Double Joists Around Deck Openings
Deck openings for stairs, built-in fire pits, or tree cutouts interrupt the continuity of the joist layout and create locations where the load from cut joists must be redirected. These openings require header beams and doubled joists on either side to carry the additional load.The doubled joists, often called trimmer joists, run parallel to the regular joists and carry the weight transferred from the headers. The headers span the width of the opening and must be sized according to the load they carry. For large openings, engineered lumber headers or doubled dimensional lumber may be required.

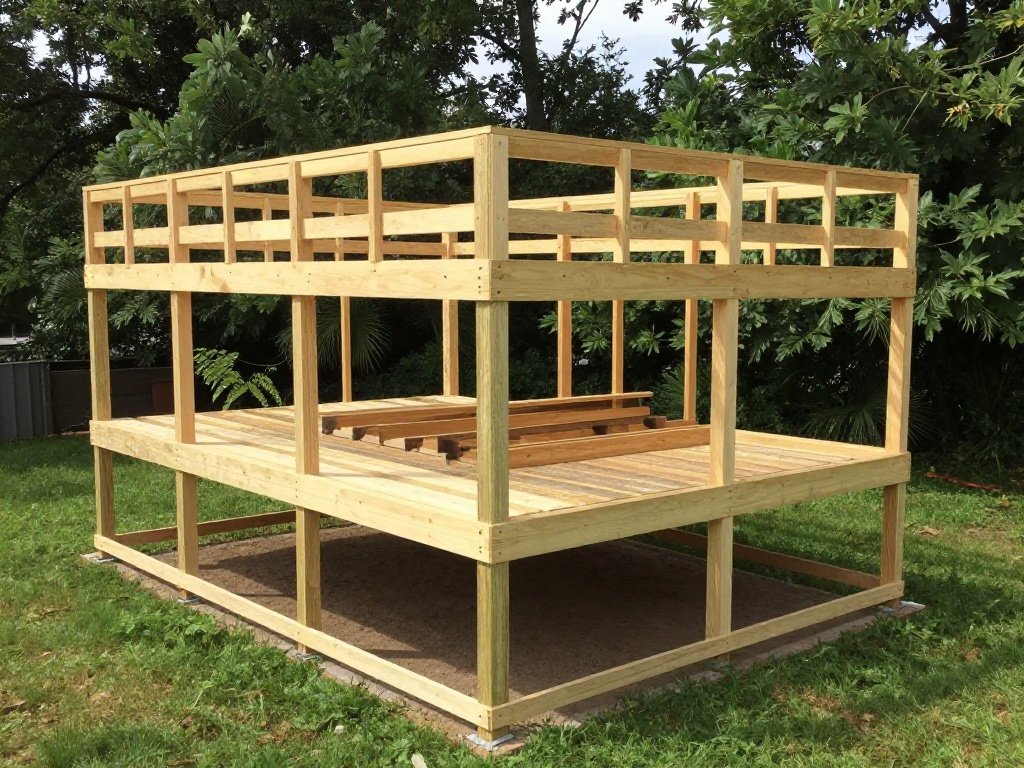

12. Frame for Multi-Level Designs with Transition Boxes
Multi-level decks create visual interest and functional zones within a large outdoor space, but they require careful framing at the transition points between levels. The most reliable approach is to frame each level as a structurally independent platform deck framing ideas and connect them at the transition using purpose-built framing, sometimes called a transition box.The lower level’s rim joist serves as the anchor for the stair stringers or the upper level’s drop, and the framing at that joint must be deck framing ideas reinforced to handle both vertical deck load and the lateral stress created by people stepping between levels.

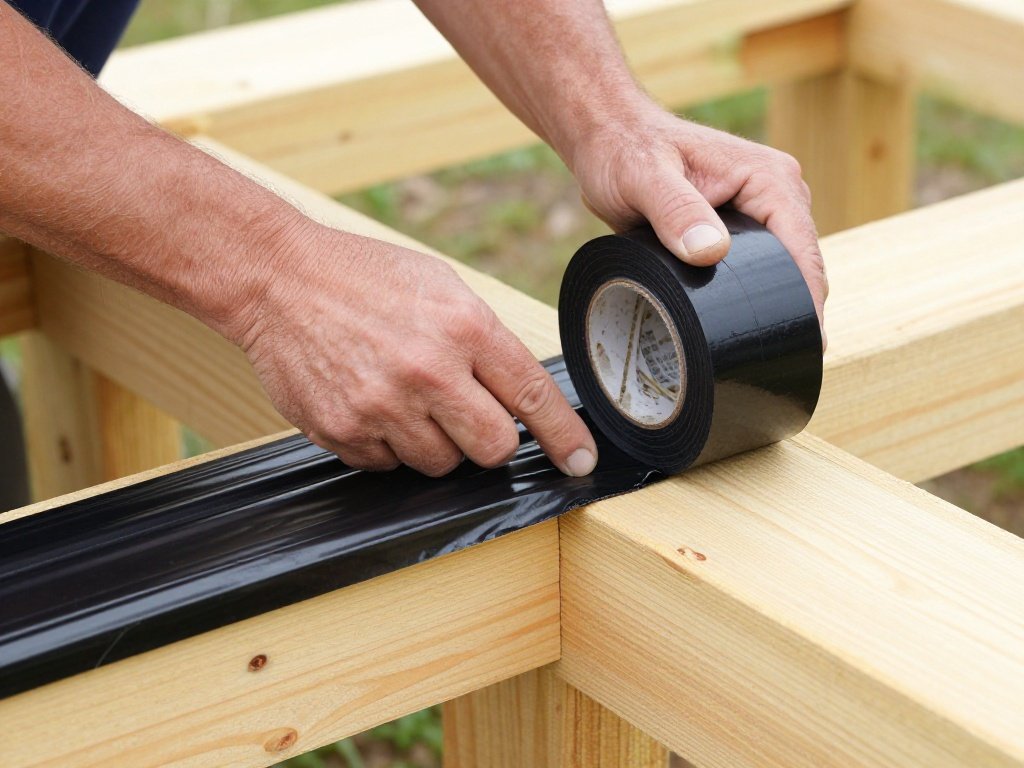

13. Apply Protective Tape to the Top of Beams and Joists
This is one of the most cost-effective framing upgrades available, and it is frequently skipped. Butyl-based flashing tape applied to the top surface of beams and joists creates a moisture barrier between the lumber and the decking boards above.Wood-to-wood contact in outdoor environments traps moisture, accelerating decay in deck framing ideas both the framing and the underside of the decking material. Flashing tape eliminates that contact point, keeps deck screws from corroding prematurely by isolating them from galvanic contact with metal hardware, and protects against freeze-thaw damage in cold climates.

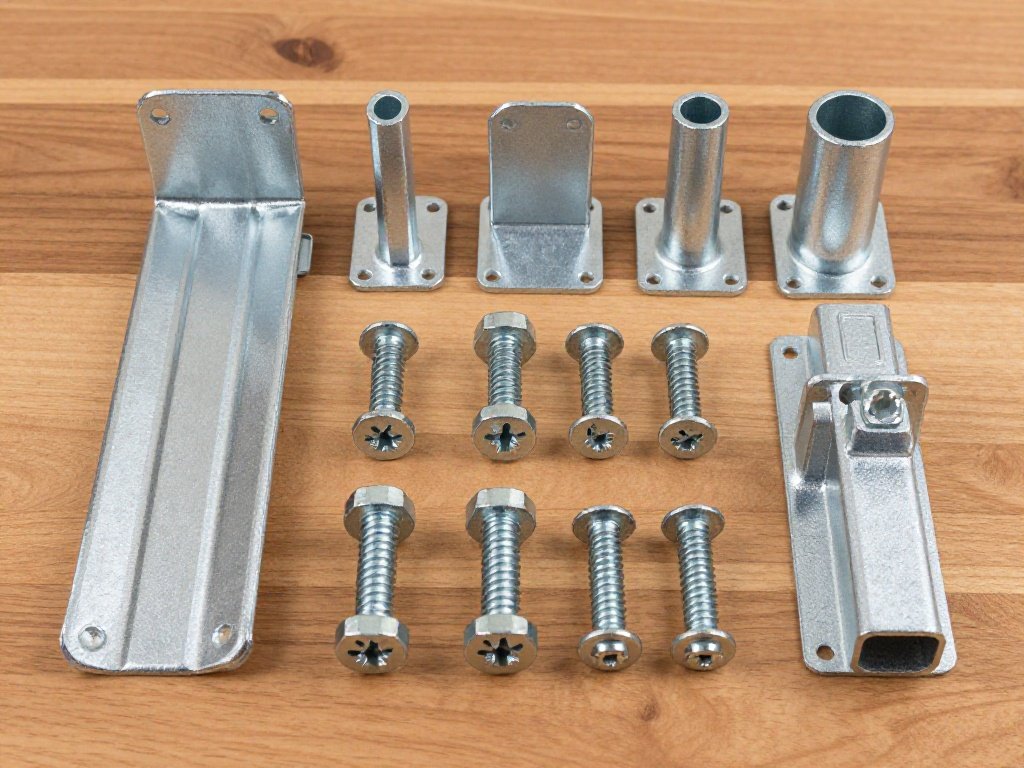

14. Use Galvanized or Stainless Steel Hardware Throughout
The hardware that holds a deck frame together is under constant environmental stress. Inferior fasteners and connectors corrode, weaken, and fail silently over time. The structural integrity of your joist hangers, post bases, beam deck framing ideas connectors, and lag bolts depends entirely on their resistance to moisture and galvanic corrosion.For most residential deck builds, hot-dipped galvanized hardware meets code requirements and provides reliable long-term performance. For coastal environments or locations where exposure to salt air is a factor, stainless steel hardware is the better investment.

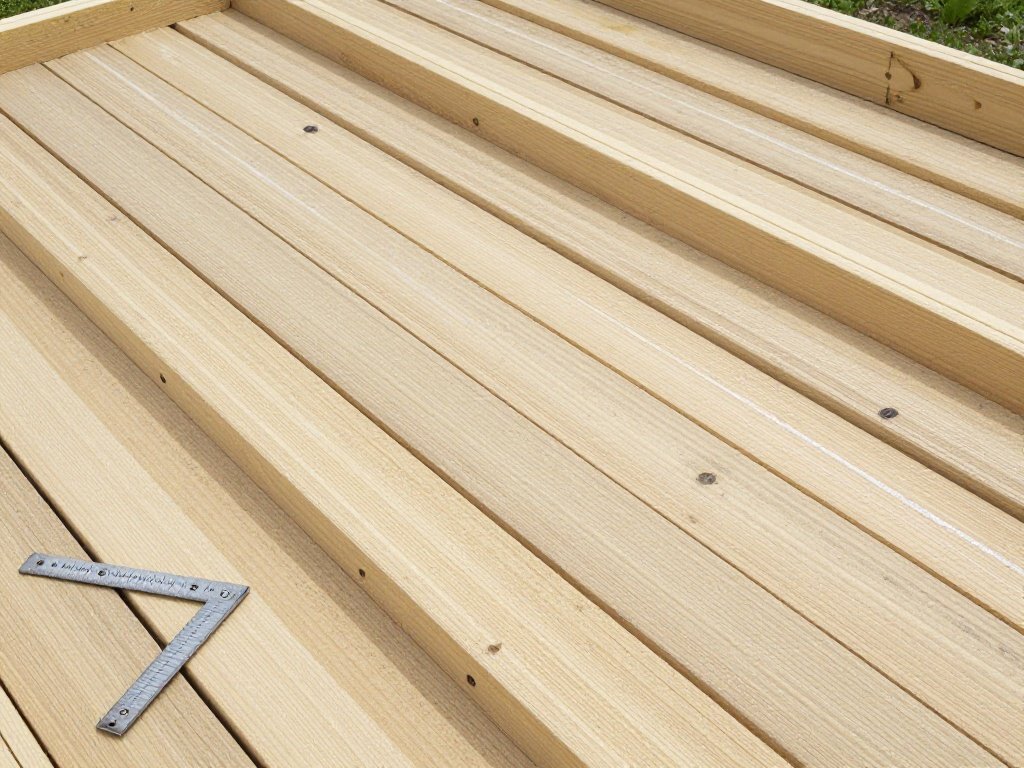

15. Plan the Frame Around Your Decking Pattern Before You Build
The final deck framing idea is one that saves significant time and money during the installation phase. The pattern in which your decking boards are laid, whether straight, diagonal, herringbone, or picture frame, directly determines the joist spacing and blocking requirements for the frame beneath.Diagonal patterns require tighter joist spacing, deck framing ideas typically 12 inches on center. Herringbone and parquet designs require a central beam or blocking at the point where the pattern changes direction. Picture frame borders require doubled rim joists or additional blocking to provide a solid fastening surface for the border boards that run perpendicular to the field boards.
Conclusion
A deck built on a properly engineered frame is an investment that compounds in value with every passing season. The 15 deck framing ideas covered here address every major structural decision in the process, from the footings in the ground to the hardware at every connection point to the way the frame is designed around the surface you want to enjoy.
No single idea on this list operates in isolation. They work together as a system. Proper footings support correctly sized posts. Correctly sized posts carry properly engineered beams. Those beams support well-spaced joists that are reinforced with blocking and protected with flashing tape. Every component depends on the one below it and supports the one above it.
Take the time to plan your frame thoroughly before the first shovel breaks ground. Pull the permits, consult your local building code, and size every member according to a proper span calculation. The result will be a deck that is safe, durable, and worth every hour you spend building it.
Frequently Asked Questions
What is the best material for deck framing? Pressure-treated lumber is the most widely used material for deck framing because it resists moisture, decay, and insect damage. For posts and any framing near the ground, use lumber rated for ground contact. Steel framing is an alternative for builders who need maximum strength with minimal material depth, though it costs more and requires different fastening techniques.
How deep should deck footings be? Footings must extend below the frost line for your geographic area to prevent heaving during freeze-thaw cycles. This depth varies by region, ranging from around 12 inches in mild climates to 48 inches or more in colder northern zones. Always check your local building code for the specific frost depth requirement in your area.
What is the difference between a flush beam and a drop beam? A drop beam is positioned below the joists and attaches to the tops or sides of the posts, offering more design flexibility and easier adjustment of post height. A flush beam sits at the same elevation as the joists, with the joists connecting to it using joist hangers. Flush beams produce a lower overall deck profile and are preferred for ground-level builds.
How far can deck joists span without support? Joist span depends on the lumber species, joist depth, and spacing. As a general example, a 2×10 Southern Yellow Pine joist spaced 16 inches on center can span approximately 15 to 16 feet between supports. Always consult an up-to-date span table and your local building code rather than relying on general estimates, as load conditions and wood species vary.
Do I need a building permit to frame a deck? In most jurisdictions, yes. Any deck that is attached to the house or elevated above a certain height, typically 30 inches from grade, requires a building permit. The permit process ensures your framing plans meet local structural and safety codes before construction begins. Building without a permit can result in fines, mandatory demolition, and complications when selling the property.
